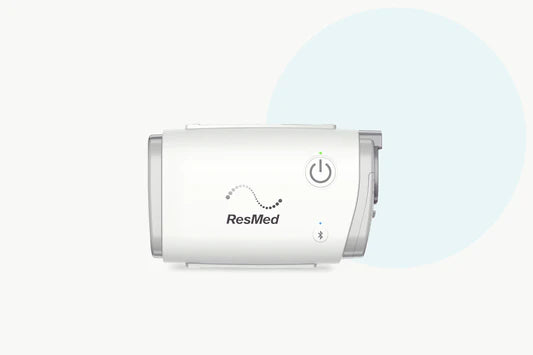

Everything you need to know about the AirMini.

Additional Features
AutoSet™ FeatureThe ResMed AirMini™ is an advanced auto titrating device (APAP) that is constantly monitoring your breathing and adjusting your therapy pressure accordingly to ensure maximum efficiency. Your sleep apnea is dynamic, so your PAP therapy should be as well. It determines whether you need more or less pressure based on sleep position or other factors. The AirMini™ can also be set to the standard CPAP and the proprietary ResMed AutoSet™ for Her modes.
─────────────────────────────────────────────────────────────────────────────────
AutoSet™ for Her FeatureThis new algorithm delivers therapeutic responses that have been tailored to the characteristics of obstructive sleep apnea (OSA) in women. Research has shown that women with OSA have more upper airway resistance and flow limitation than the general OSA population1, which is why the AutoSet™ for Her algorithm has been designed to be more sensitive to flow limitation.
─────────────────────────────────────────────────────────────────────────────────
HumidX™ & HumidX™ Plus TechnologyAirMini™ features waterless humidification thanks to the fully integrated HumidX™ or HumidX™ Plus heat-moisture exchanger, a non-heated, waterless humidification system. This is designed to enhance your therapy experience and keep you hydrated without the hassle of adding water.Please note:AirFit™ and AirTouch™ F20 masks require a specific type of HumidX™ cartridge made specifically for these CPAP masks.HumidX™ cartridges for the F20 mask can be found here. Additionally, the AirFit™ F30 CPAP mask is not compatible and does not support HumidX™ and HumidX™ Plus.
─────────────────────────────────────────────────────────────────────────────────
AutoRamp™ Feature with Sleep Onset DetectionThis advanced feature is designed to make sleep therapy more comfortable. The AirMini™ begins by delivering a low start pressure to help you fall asleep easily. Using its sleep onset detection capability, the device comfortably starts ramping up to your prescribed pressure the moment that it detects you’ve fallen asleep.
─────────────────────────────────────────────────────────────────────────────────
Expiratory Pressure Relief (EPR™) FeatureEPR™ gently lowers the pressure delivered to you as you exhale which makes it easier to breathe out against inbound air pressure.
─────────────────────────────────────────────────────────────────────────────────
SmartStart™ FeatureThe AirMini™ is ready when you are and even when you’re not. No buttons to push to start and stop therapy. This automated feature allows you to put on your mask and breathe to start therapy and take it off to stop.
─────────────────────────────────────────────────────────────────────────────────
Bluetooth Connectivity through SmartappPair your AirMini™ with your Android or Apple device and access your sleep reporting dashboard to view historical sleep data such as; usage hours, events per hour (AHI) and leak rate. In addition, you can also control device features and access friendly owner’s guides right from the comfort of your smartphone. The smartapp is available for free download from theApple AppStore&GooglePlay Store.
─────────────────────────────────────────────────────────────────────────────────
ActiveAir™ TechnologyActiveAir™ has enabled ResMed to create the AirMini™, the smallest PAP therapy device in the world. To deliver therapy that’s as effective as a traditional bedside device with a smaller motor means the device must be able to increase therapy pressure without the need to proportionally increase flow. ActiveAir™ uses a flexible silicone valve to regulate vent flow across the pressure range, reducing the overall flow required to achieve therapy pressures.
─────────────────────────────────────────────────────────────────────────────────
Mask Interface CompatibilityTo accommodate the AirMini™ HumidX™ technology and ActiveAir™ venting system, the AirMini™ seamlessly integrates via a set-up pack available exclusively for the following advanced ResMed mask interface models:ResMed AirFit™ P10,AirFit™ N20,AirFit™ F20,AirTouch™ F20and theAirFit™ N30.
─────────────────────────────────────────────────────────────────────────────────
Wide Range of AirMini™ Set-Up PacksUnlike most CPAP devices which have universal hoses compatible with almost every mask interface, the AirMini™ is only compatible with the ResMed AirFit™ N20 nasal cushion system, AirFit™ P10 pillow system, AirFit™/AirTouch™ F20 full mask systems, and the AirFit™ N30 nasal mask. A corresponding AirMini™ set-up pack must be selected to fully interface the chosen mask style with your AirMini™ so that the advanced ActiveAir™ venting and HumidX™ technology can be integrated.
─────────────────────────────────────────────────────────────────────────────────
AC or Battery Power OptionsSleep great even when you’re off the grid with thelithium ion battery that is available from Lofta. Great for camping, overnight air travel and for emergency back-up. Please note that the ion batteries are sold separately.
─────────────────────────────────────────────────────────────────────────────────
110-240 AC Power SupplyThe AirMini™ AC power supply loves to travel. With the plug and play 110-240 built-in converter, it caters for international travel with ease by supporting various power outlets.
Specifications
GTIN/UPC
619498381135
─────────────────────────────────────────────────────────────────────────────────
Manufacturer Part Number
38113
─────────────────────────────────────────────────────────────────────────────────
Product Dimensions
AirMiniT" CPAP Device: 5.4 L x 33 W x 2.1• H (13.7cm L x 8.4 cm W x 53 cm H)
AirMiniT" Air Outlet: 16mm inner diameter
AirMiniT" Tubing - Length: 6 ft 2 in
AirMiniT" Tubing - Inner Diameter: 15mm
AirMiniT" Power Supply Cord Length: 6 ft
AirMiniT" Power Supply (Without Cord): 3.5 in L x 1.4 in W x 2 in H
─────────────────────────────────────────────────────────────────────────────────
Product Dimensions
Machine with Water Chamber: 10.04" L x 4.57" W x 5.91" HMachine with Side Cover (Without Water Chamber): Approx. 8" L x 4.57" W x 5.91" HTravel Bag: 13.24" L x 10" W x 5" H90W Power Supply Only (Not including Cord or Plug): 5 1/2" x 1 7/8" x 1 1/4"Length - SlimLine Tubing: 6 feetWater Chamber Capacity: 380 mL
─────────────────────────────────────────────────────────────────────────────────
Product Weights
AirMiniTN Weight: 0.66 lbs. (1056 oz)
AirMini'U Power Supply Weight: .45 lbs. (7.2 oz)
AirMinitU HumidX Module Weight: 012 lbs. (.20 oz)
PIO Nasal Pillow Mask Setup Pack Weight (With Tubing): -238 lbs. (3.8 oz)
F20 Full Face Mask setup Pack Weight (With Tubing): .416 (6.7 oz)
N20 Nasal Mask Setup Pack Weight (With Tubing): .322 lbs. (52 oz)
─────────────────────────────────────────────────────────────────────────────────
Power
GAC Input Range: 100-240V, 50-60Hz
Typical Power Consumption: 6.3 W
Battery-Optional Lithium Ion Battery Package Available
DC Power Supply-Optional DC Power Supply Available
Standby Power Consumption: 1 W
─────────────────────────────────────────────────────────────────────────────────
Sleep DataOnboard Data Storage Memory: 365 daysCloud Data Storage with AirMini™ App: Unlimited
─────────────────────────────────────────────────────────────────────────────────
Climate Specifications
Operating Temperature: +410 F to +950 F (+50 C to +350 C)
Operating Humidity: 10 to 95% relative humidity, non-condensing
Operating Altitude: Sea level to 8,500 ft
Storage and Transport Temperature: -130 F to +158' F (-250 C to +700 C)
Storage and Transport Humidity: 5 to 95% relative humidity, non-condensing
─────────────────────────────────────────────────────────────────────────────────
Manufacturer Information
Warranty: 2 years
─────────────────────────────────────────────────────────────────────────────────
Product WarrantyMask Systems: 90 daysAirMini™ Device: 2 years
─────────────────────────────────────────────────────────────────────────────────
Prescription
Yes, this item requires a prescription before shipment. Please feel free to consider Lofta’s RxExpress Online CPAP Prescription Service for assistance regarding this.
Resources
Downloads
ResMed AirMini™ Portable CPAP User Guide
─────────────────────────────────────────────────────────────────────────────────
Video
How to set up your ResMed AirMini™ Device
How to replace your AirMini™ filters
https://youtu.be/GJ3MmjWcPfY
Ready Support for Sleep Success
Basic Support
Rest easy with White Aspects guidance and recommendations.
- ✔ On-demand compliance reports ($35)
- ✔ White Aspects Respiratory Therapist Team available for support / coaching ($40 for a 20 minute session)
- ✔ Medical forms requiring a physician signature ($35 - $125)
- ✘ 60-Night Mask Exchange
- ✘ Enhanced Return Policy
White Aspects Care
Personal support sets you up for success.
$200
- ✔ 1 year of coaching calls
- ✔ 60-Night Cash Back Return
- ✔ 60-Night Unlimited Mask Exchanges
- ✔ 1 Year Supply of Device Filters
- ✔ V-COM Air Flow Reducer
- ✔ Jump Start Coaching (1 wk, 1 mo, 3 mo, 6 mo)
- ✔ 3-year PAP Device Product Protection
- ✔ Discounts on future CPAP supply orders
- ✔ Enhanced Return Policy
Sleep Therapy Simplified
Is the AirMini™ noisy?
You should have the expectation that the AirMini™ as well as all travel devices will have slightly greater venting noise than full-sized devices. When using the AirMini™ you may hear venting white noise on inhalation. There will be virtually no noise on exhalation or from the device itself. The majority of AirMini™ users adapt quickly to this venting noise and find it to be a non-issue. At the end of the day, everyone has personal sensitivities to noise, so you will be the judge.
How do I set up my ResMed AirMini™?
The AirFit P10 Complete System includes the AirFit P10 frame, three pillows (extra-small, small and medium), the standard (one size fits all) headgear, two clips to adjust the headgear size and the short Flexi-Tube.
Which masks are compatible with the AirMini™?
Due to the special design of the AirMini™ including the ActiveAir™ vent technology, the AirMini™ is only compatible with the following masks:
- ResMed AirFit™ P10 Mask Pack for ResMed AirMini™ Travel CPAP
- ResMed AirFit™ N30 Nasal mask with Headgear
- ResMed AirFit™ N20 mask with Headgear
- ResMed AirFit™ N20 For Her Nasal mask with Headgear
- ResMed AirFit™ F20 Full Face Mask with Headgear
- ResMed AirTouch™ F20 Memory Foam Full Face Mask with Headgear
- ResMed AirFit™ F30 Full Face Mask with Headgear (Not HumidX Compatible)
Please note that setup packs are required for these masks.
